Create Vimeo-like top navigation

January 19, 2009

vimeo

I really like the top navigation implemented on Vimeo.com. First time I saw it I wanted to recreate it. And this is exactly what I am going to do in this tutorial.

What I like the most is the menu that drops down when you hover search box. It offers you different search options that you can choose and narrow your search.

Download source View demo

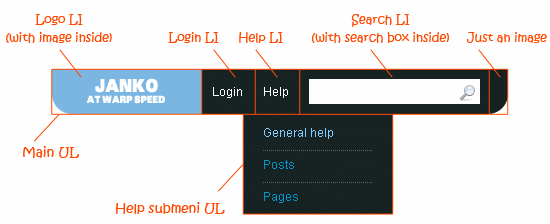

The base for this tutorial is simple CSS drop down menu based on unordered list. The structure is visually described in the image below:

sample1

As you can see we have UL with four items. The first one is logo with short submenu. Then comes login link, Help link with submenu and search item with submenu. Each submenu is being shown when hover corresponding link.

So this is the base structure that we’ll use here:

<ul id="menu">
    <li class="logo">
        <img style="float:left;" alt="" src="menu_left.png"/>
        <ul id="main">
            <li>Welcome to <b>Create Vimeo-like top navigation</b> tutorial!</li>
        </ul>
    </li>
    <li><a href="#">Login</a>
    </li>
    <li><a href="#">Help</a>
        <ul id="help">
            <li><a href="#">General help</a></li>
            <li><a href="#">Posts</a></li>
            <li><a href="#">Pages</a></li>
        </ul>
    </li>
    <li class="searchContainer">
        <div>
        <input type="text" id="searchField" />
        <img src="magnifier.png" alt="Search" onclick="alert('You clicked on search button')" /></div>
        <ul id="search">
            <li><input id="cbxAll" type="checkbox" />All</li>
            <li><input id="Articles" type="checkbox" />Articles</li>
            <li><input id="Tutorials" type="checkbox" />Tutorials</li>
            <li><input id="Reviews" type="checkbox" />Reviews</li>
            <li><input id="Resources" type="checkbox" />Resources</li>
        </ul>
    </li>
</ul>
<img style="float:left;" alt="" src="menu_right.png"/>

And CSS styles:

/* menu */
#menu{ margin:0px; padding:0px; list-style:none; color:#fff; line-height:45px; display:inline-block;
    float:left; z-index:1000; }
#menu a { color:#fff; text-decoration:none; }
#menu > li {background:#172322 none repeat scroll 0 0; cursor:pointer; float:left; position:relative;
    padding:0px 10px;}
#menu > li a:hover {color:#B0D730;}
#menu .logo {background:transparent none repeat scroll 0% 0%; padding:0px;
    background-color:Transparent;}
/* sub-menus*/
#menu ul { padding:0px; margin:0px; display:block; display:inline;}
#menu li ul { position:absolute; left:-10px; top:0px; margin-top:45px; width:150px; line-height:16px;
    background-color:#172322; color:#0395CC; /* for IE */ display:none; }
#menu li:hover ul { display:block;}
#menu li ul li{ display:block; margin:5px 20px; padding: 5px 0px;  border-top: dotted 1px #606060;
    list-style-type:none; }
#menu li ul li:first-child { border-top: none; }
#menu li ul li a { display:block; color:#0395CC; }
#menu li ul li a:hover { color:#7FCDFE; }
/* main submenu */
#menu #main { left:0px; top:-20px; padding-top:20px; background-color:#7cb7e3; color:#fff;
    z-index:999;}
/* search */
.searchContainer div { background-color:#fff; display:inline; padding:5px;}
.searchContainer input[type="text"] {border:none;}
.searchContainer img { vertical-align:middle;}

But as you can see this is far away from the good looking Vimeo navigation. It is functional, of course, but we need that pretty rounded corners everywhere. The solution is actually simple and it is described in the image below:

sample2

Now that looks fine. What we actually did can be seen in the code below. Let’s take Help submenu for the example:

<li><a href="#">Help</a>
    <ul id="help">
        <li>
            <img class="corner_inset_left" alt="" src="corner_inset_left.png"/>
            <a href="#">General help</a>
            <img class="corner_inset_right" alt="" src="corner_inset_right.png"/>
        </li>
        <li><a href="#">Posts</a></li>
        <li><a href="#">Pages</a></li>
        <li class="last">
            <img class="corner_left" alt="" src="corner_left.png"/>
            <img class="middle" alt="" src="dot.gif"/>
            <img class="corner_right" alt="" src="corner_right.png"/>
        </li>
    </ul>
</li>

We added two absolutely positioned images inside the first LI that will create “shoulders”. Also, we added one more LI to the end of the list that contains two absolutely positioned corners and one 1x1px stretched image to fill the empty space. And this is the additional styles that you need:

/* corners*/
#menu .corner_inset_left { position:absolute; top:0px; left:-12px;}
#menu .corner_inset_right { position:absolute; top:0px; left:150px;}
#menu .last { background:transparent none repeat scroll 0% 0%; margin:0px; padding:0px;
    border:none; position:relative; border:none; height:0px;}
#menu .corner_left { position:absolute; left:0px; top:0px;}
#menu .corner_right { position:absolute; left:132px; top:0px;}
#menu .middle { position:absolute; left:18px; height: 20px; width: 115px; top:0px;}

Now we have functional AND good looking top navigation. This might be optimized, so if you have free time or you need it for your projects, step on it. Or you can use this one as is :)

Did you implement something similar in any project? Do you find this one useful for some of your future projects?
